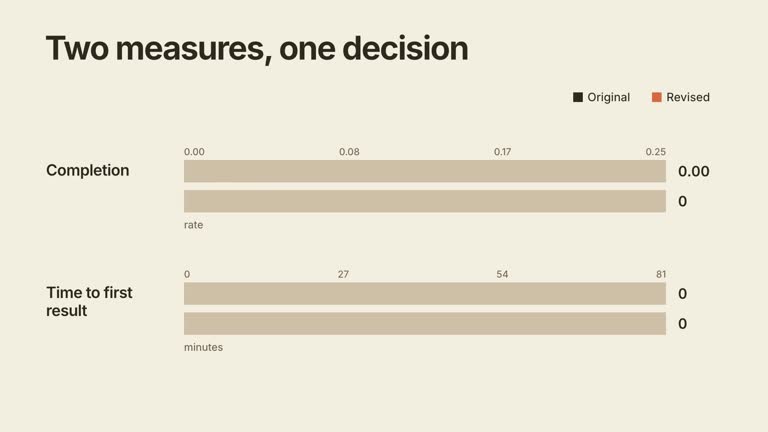

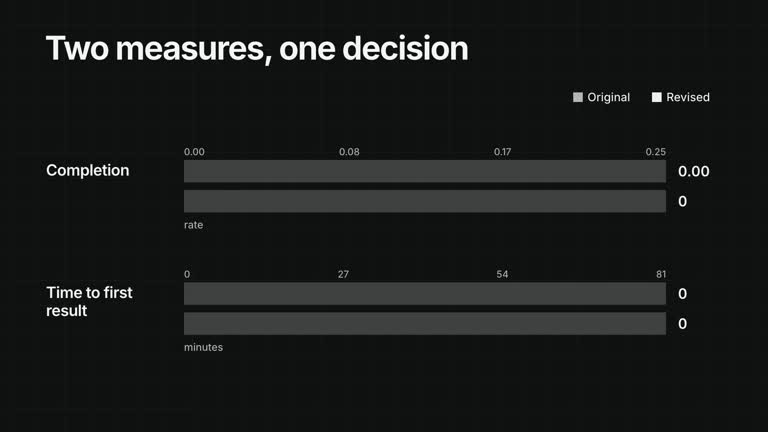

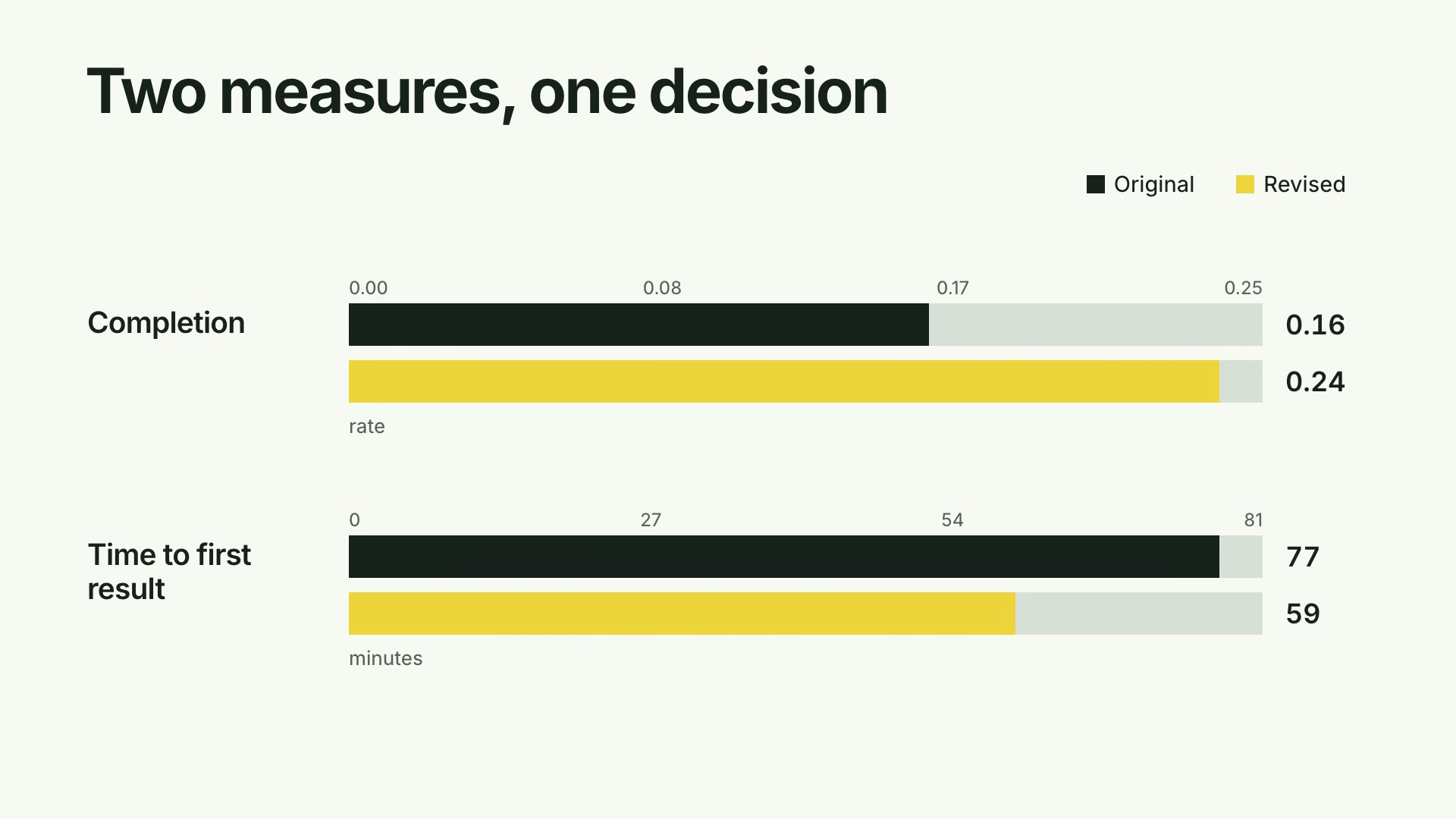

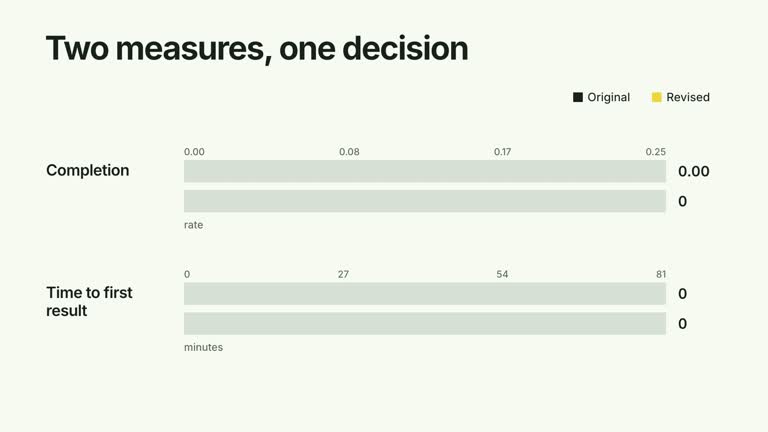

Grouped Metric Bars

Two series fill within one metric before the next metric begins. Each pair keeps its own numerical scale and unit, with values aligned beside the measured endpoints.

Prepare

Choose concise original content. Bundled generated images are reused automatically; supply local images only when replacing them. Presenter effects still require suitable footage. The sample values are illustrative. Read the included motion specification before replacing an essential relationship.

Generate

Run the installed Skill or use its bundled generator. Supply an output folder with --out, optional content JSON with --data, and a local video with --media for presenter effects. An optional --images JSON map replaces only its named slots; relative paths resolve beside that JSON file. Read references/image-policy.md before adapting visual material. Choose the aspect ratio (16:9, 9:16, 4:3 or 3:4) and the resolution (4K by default, or 2K or 1080p) with --aspect and --resolution; each aspect ratio has its own layout, and the bottom of the frame stays free for subtitles. The default style is white-yellow; alternatives are Charcoal & Lime (charcoal-lime) and Black & White (the compatible midnight-ice ID), all on a light-grey grid. Smiley Sans sets all text and IBM Plex Mono sets measurements and ordinal labels; pass --zh-font noto-sans-sc to set Chinese content in Noto Sans SC.

Refine

Change content at its input, and motion in the effect source. Use semantic color tokens and keep type consistent. Rebuild the editable composition, run HyperFrames checks, and render the MP4. Review the beginning, key change and settled state before using it in a finished edit.

Inputs

• seriesLabels: provide your own content or retain the illustrative default.
• metrics: provide your own content or retain the illustrative default.

The output directory contains the complete local composition and build record. Generated image defaults and provenance are included in the installable Skill; preview videos and review reports are delivered separately.
